These Suzuki Savage wiring schematics are provided completely free of charge for the Savage community.
Disclaimer: These diagrams come with no warranty. Electrical work can be dangerous, use them at your own risk. If you spot any layout errors, please drop a comment or email me so I can update them for our fellow Savage owners.
Click on any image to open the full-resolution version in a new tab.

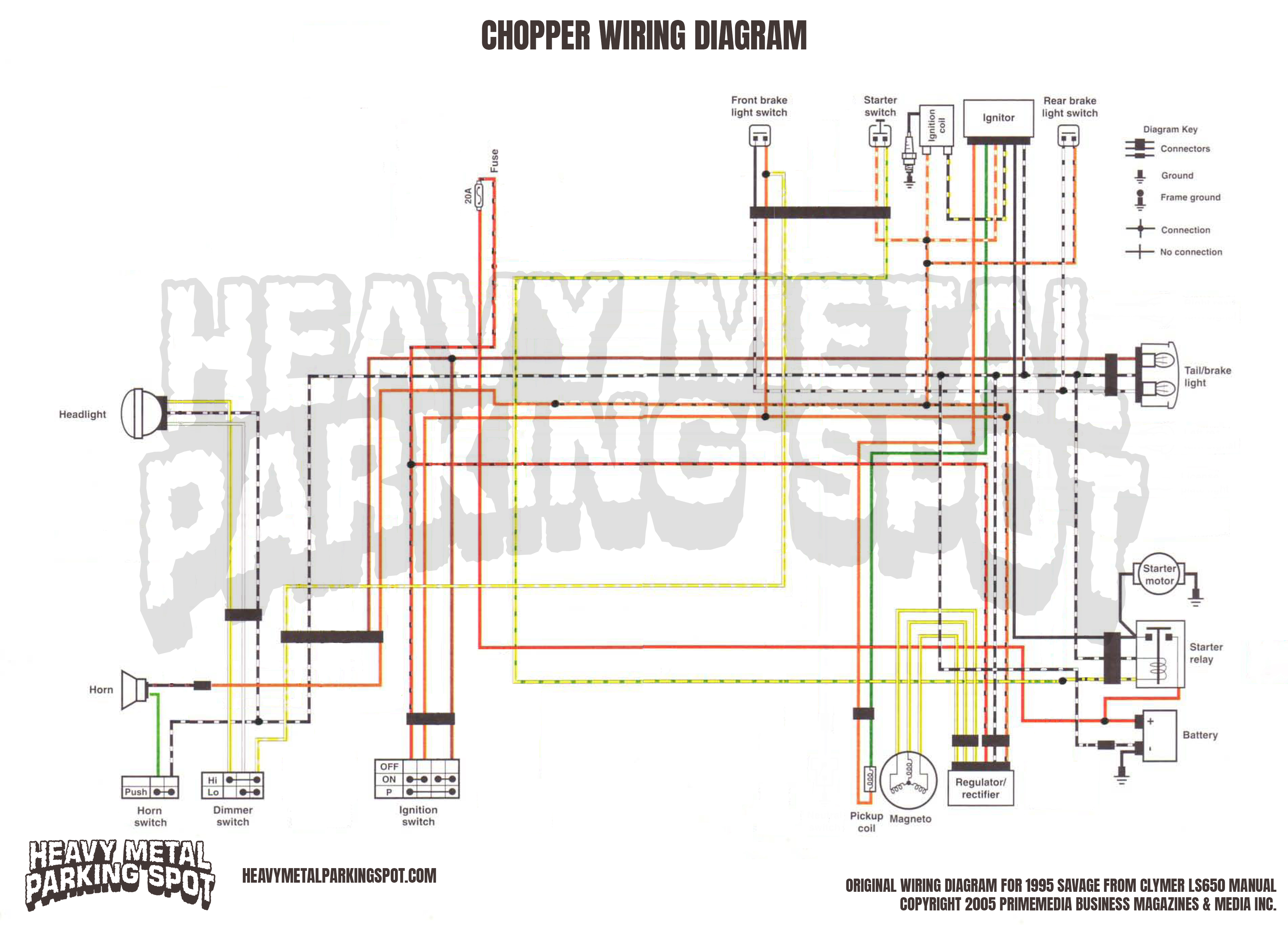

Chopper Wiring Diagram

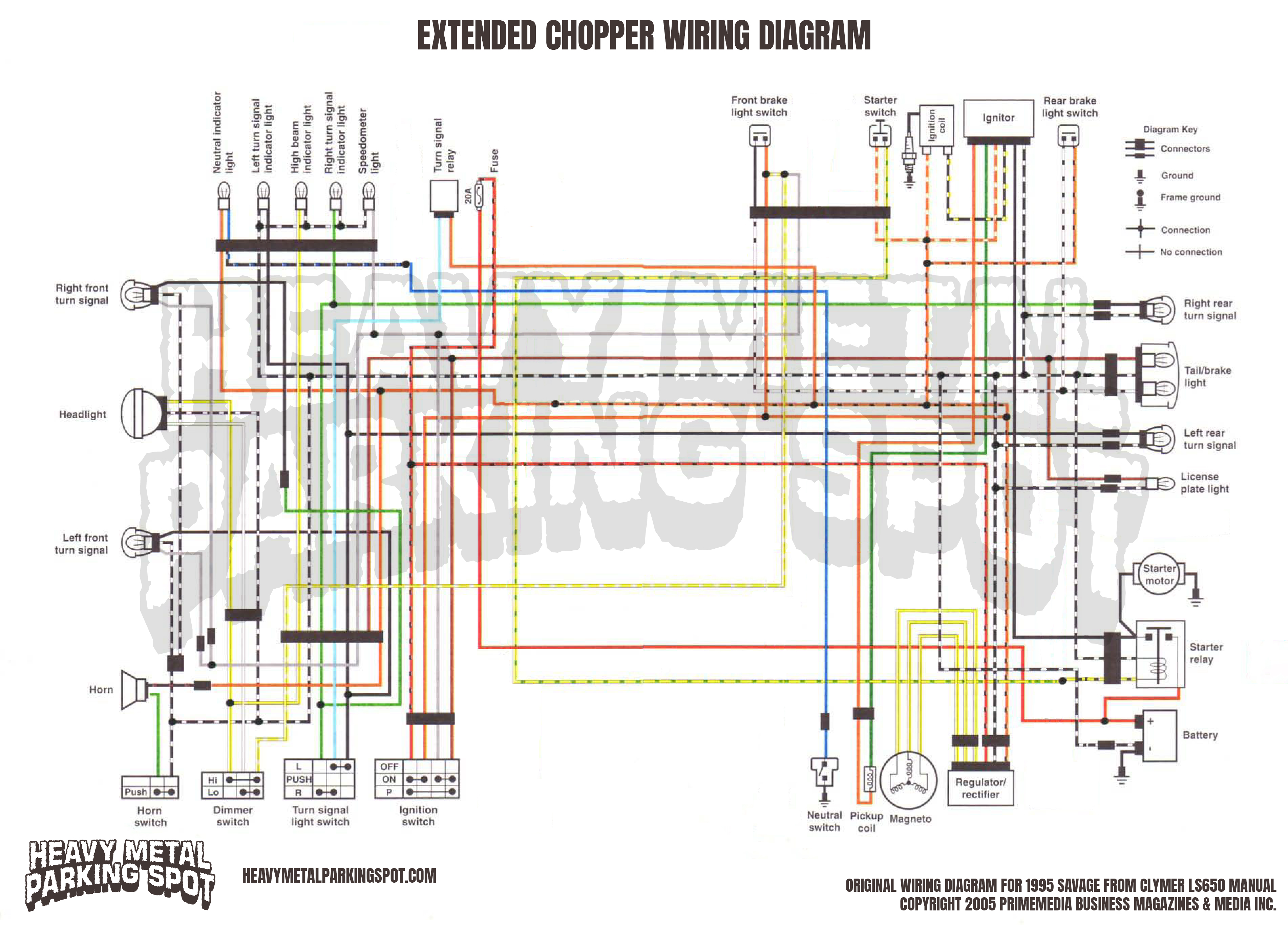

Extended Chopper Wiring Diagram

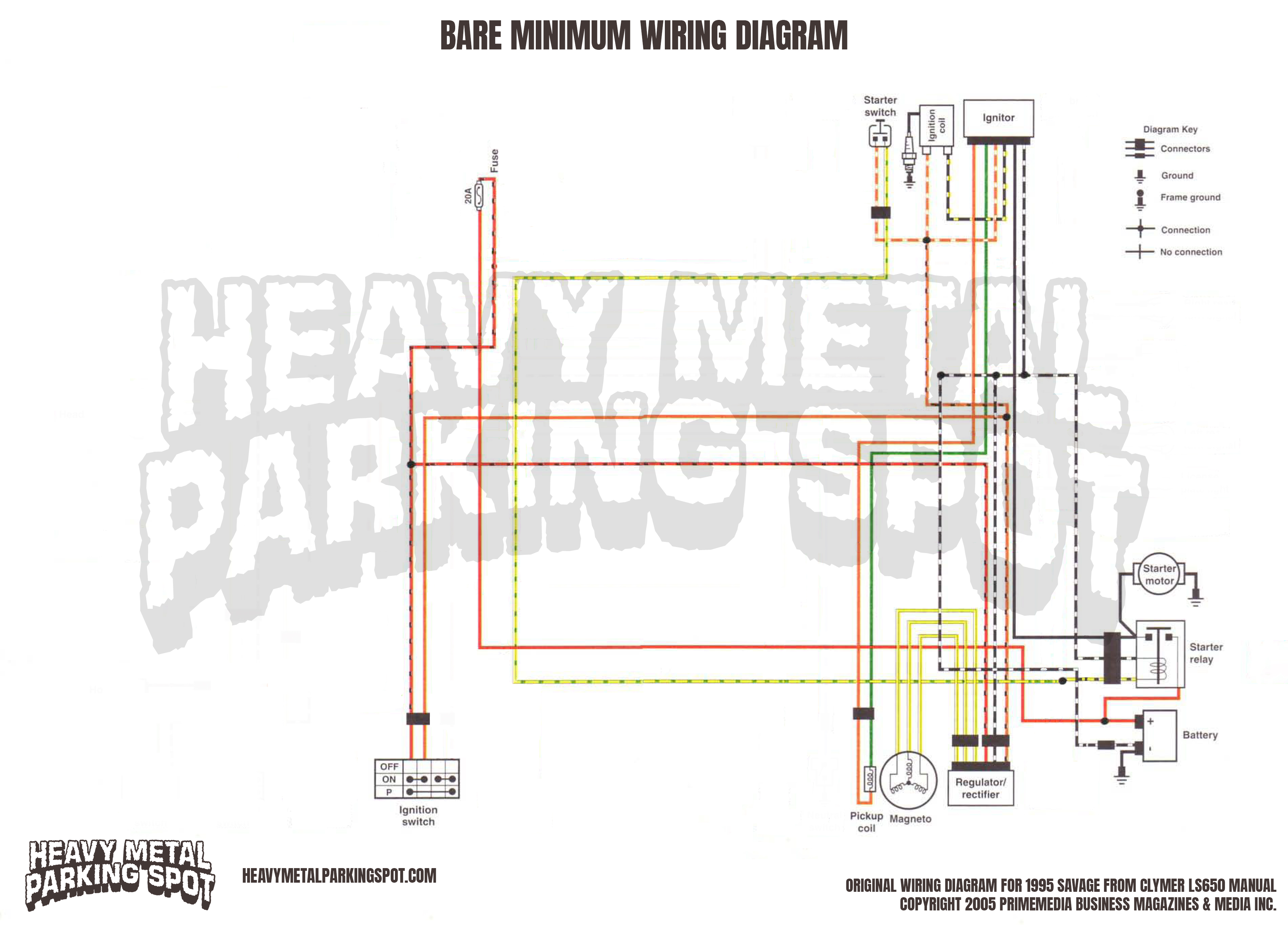

Bare Minimum Wiring Diagram

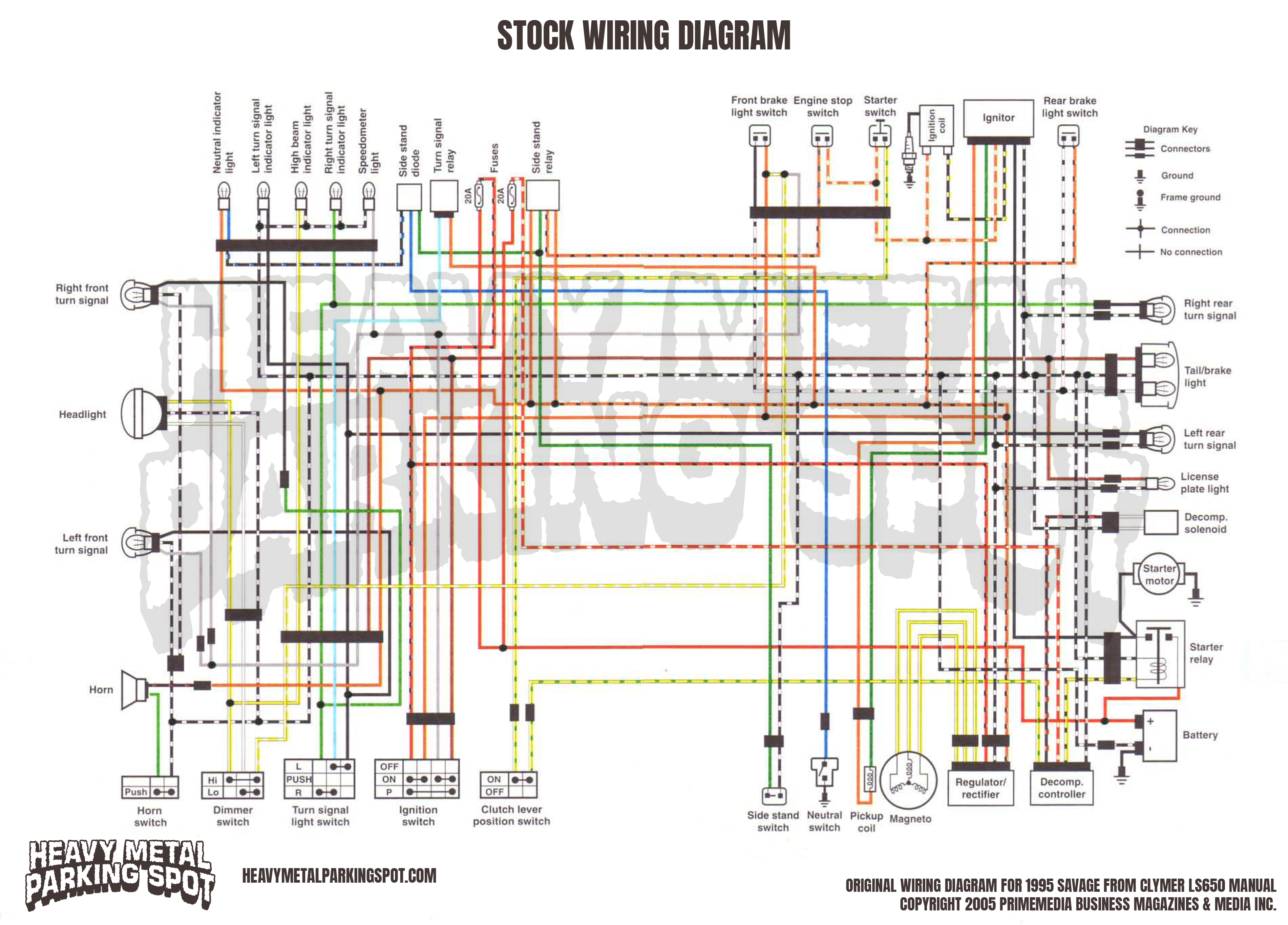

Stock Wiring Diagram
Video
Presentation of all the wiring diagrams.
